Specifications
| Dimension Tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm |
| Beam Deviation | <3 arc minutes |
| Chamfer | Protected <0.5mmx45° |
| Coating | Partial reflectance on hypotenuse face |
| AR coating on all entrances | |
| T/R Tolerance | ±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2 |
| Damage Threshold | >500mJ/cm2, 20ns, 20Hz, @1064nm |
| Material | BK7 |
| T/R | 50:50±5% |
| Polarization | Avg |

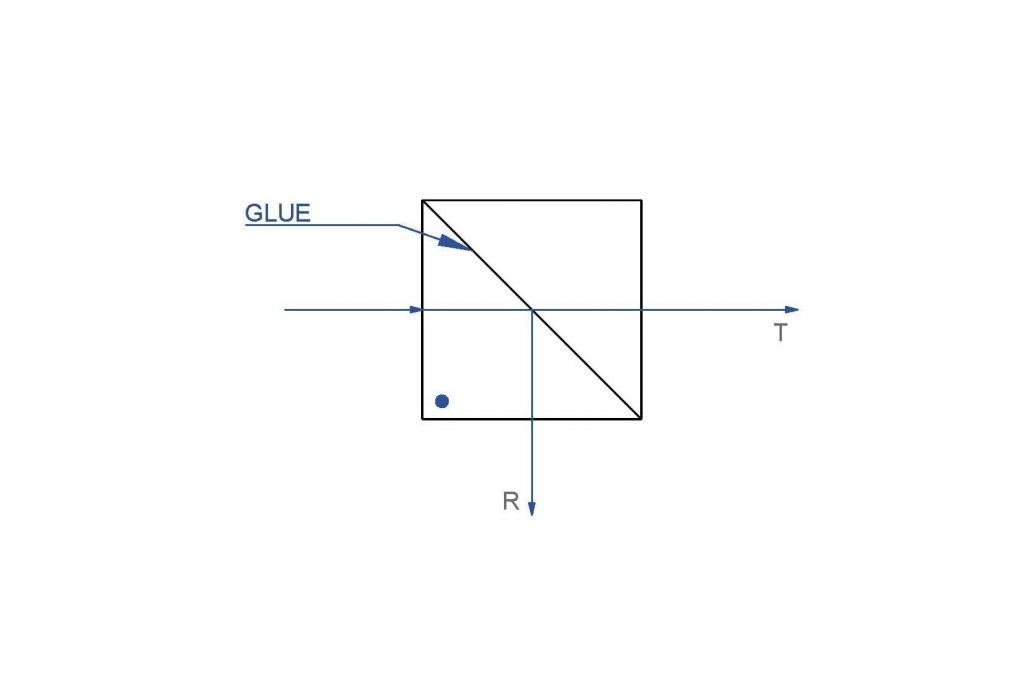

Light Path Map
Tab Content
Features
★ All Dielectric Coating
★ NOA61 cemented
★ Custom Design Available
★ RoHS Compliant
Standard Product
| Product Number | Dimension [mm] | Wavelength [nm] | Cart |
| BC001 | 5.0*5.0*5.0 | 400-700 |  |
| BC002 | 10.0*10.0*10.0 | 400-700 | |
| BC003 | 12.7*12.7*12.7 | 400-700 | |
| BC004 | 15.0*15.0*15.0 | 400-700 | |
| BC005 | 20.0*20.0*20.0 | 400-700 | |
| BC006 | 25.4*25.4*25.4 | 400-700 | |
| BC007 | 5.0*5.0*5.0 | 650-900 | |
| BC008 | 10.0*10.0*10.0 | 650-900 | |
| BC009 | 12.7*12.7*12.7 | 650-900 | |
| BC010 | 15.0*15.0*15.0 | 650-900 | |
| BC011 | 20.0*20.0*20.0 | 650-900 | |
| BC012 | 25.4*25.4*25.4 | 650-900 | |
| BC013 | 5.0*5.0*5.0 | 900-1200 | |
| BC014 | 10.0*10.0*10.0 | 900-1200 | |
| BC015 | 12.7*12.7*12.7 | 900-1200 | |
