Specifications
| Dimension Tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm |
| Beam Deviation | <3 arc minutes |
| Chamfer | Proteced <0.5mmx45° |
| Coating | Partial reflectance on cemented surfaces |
| AR coating on all entrances | |
| T/R Tolerance | ±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2 |
| Damage Threshold | >500mJ/cm2, 20ns, 20Hz, @1064nm |
| Material | BK7 |
| T/R | 50/50±5% |
| Polarization | Avg |

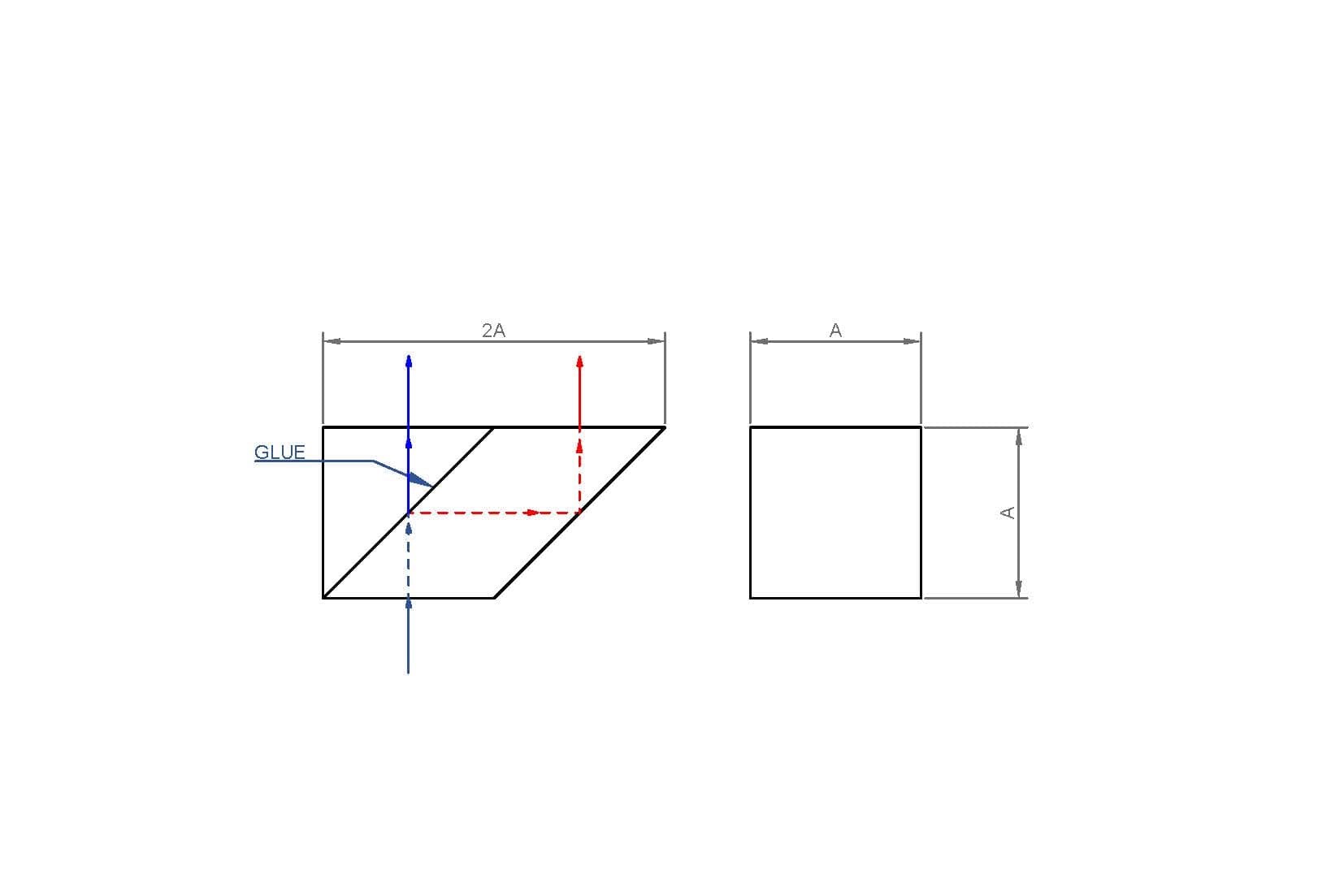

Light Path Map
Tab Content
Features
★ Split incident beam into two displaced parallel beams
★ Custom Design Available
★ NOA61 cemented
★ RoHS Compliant
Standard Product
| Product Number | Dimension A [mm] | Wavelength [nm] | Cart |
| LDB001 | 12.7 | 400-700 |  |
| LDB002 | 25.4 | 400-700 | |
| LDB003 | 12.7 | 650-900 | |
| LDB004 | 25.4 | 650-900 | |
| LDB005 | 12.7 | 900-1200 | |
| LDB006 | 25.4 | 900-1200 | |
