Nd:YAG Laser Beamsplitter Plate

Specifications

Dimension Tolerance	+0.0/-0.2mm
Thickness Tolerance	±0.2mm
Surface Quality	60/40
Clear Aperture	>90%
Flatness	<λ/4@633nm per 25mm
Parallelism	<30 arc seconds
Chamfer	Protected <0.5mmx45°
T/R Tolerance	±5% at specific polarization state
Coating(AOI=45°)	S1: Partial reflectance coating
	S2: AR coating
Damage Threshold	>5J/cm2, 20ns, 20Hz, @1064nm
Thickness	3.0mm
T/R[%]	50:50±5%
Incident Angle	45°

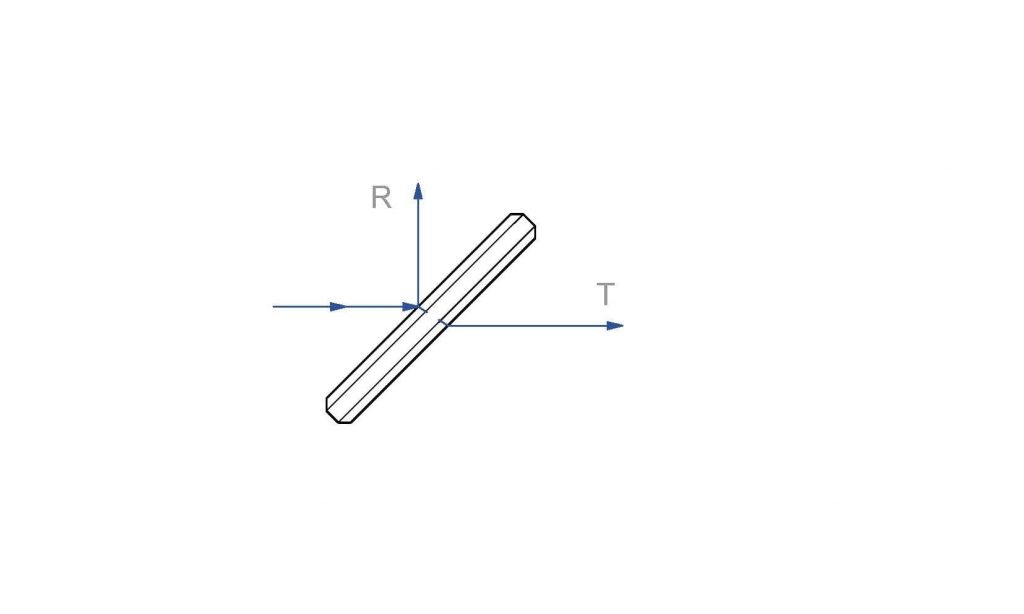

Light Path Map

Features

★ All Dielectric Coating
★ High Damage Threshold
★ Custom Design Available
★ RoHS Compliant

Standard Product
