Specifications
| Dimension Tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm |
| Beam Deviation | <3 arc minutes |
| Chamfer | Protected <0.5mmx45° |
| Absorption | <10% |
| Transmission | 45%±5% |
| Polarization | <6% |
| Coating | Non-polarizing beamsplitter coating on hypotenuse face |
| AR coating on all entrances | |
| Damage Threshold | >100mJ/cm2, 20ns, 20Hz, @1064nm |
| Material | BK7 |
| T/R | 45:45±5% |

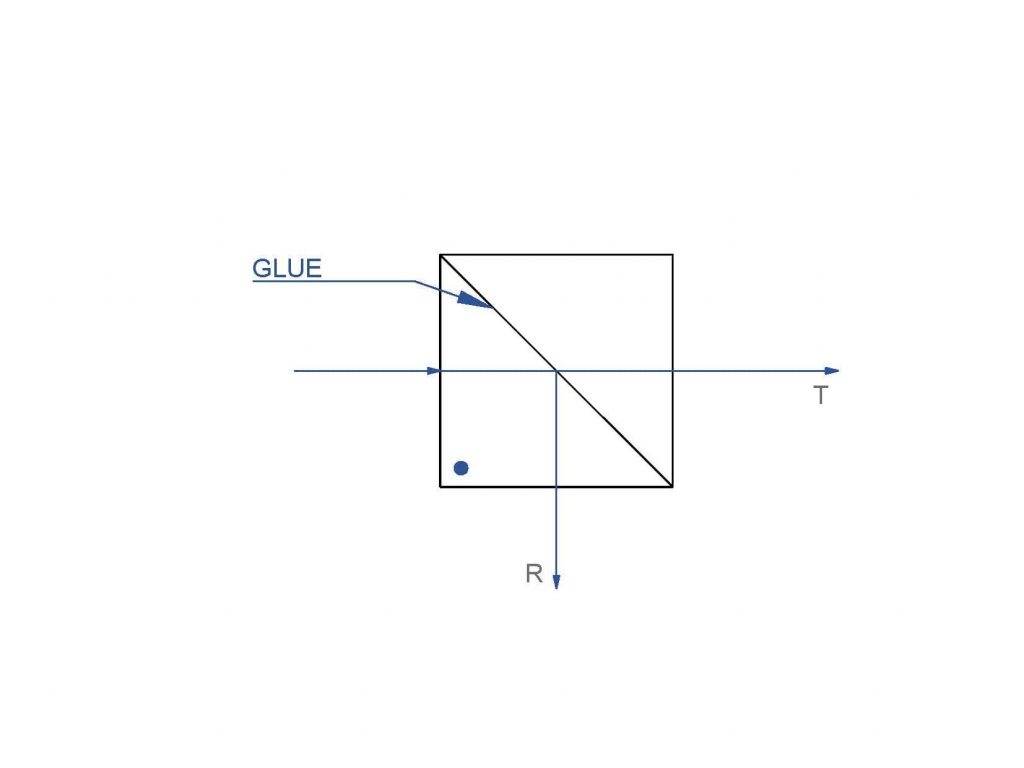

Light Path Map
Tab Content
Features
★ Hybrid coating design, <10% absorption
★ Split ratio not sensitive to polarization of the incident beam
★ RoHS Compliant
Standard Product
| Product Number | Dimension [mm] | Wavelength [nm] | Cart |
| NPBC001 | 10.0*10.0*10.0 | 532 |  |
| NPBC002 | 10.0*10.0*10.0 | 633 | |
| NPBC003 | 10.0*10.0*10.0 | 780 | |
| NPBC004 | 10.0*10.0*10.0 | 420-700 | |
| NPBC005 | 10.0*10.0*10.0 | 700-1000 | |
| NPBC006 | 10.0*10.0*10.0 | 900-1200 | |
| NPBC007 | 10.0*10.0*10.0 | 1200-1600 | |
| NPBC008 | 12.7*12.7*12.7 | 532 | |
| NPBC009 | 12.7*12.7*12.7 | 633 | |
| NPBC010 | 12.7*12.7*12.7 | 780 | |
| NPBC011 | 12.7*12.7*12.7 | 420-700 | |
| NPBC012 | 12.7*12.7*12.7 | 700-1000 | |
| NPBC013 | 12.7*12.7*12.7 | 900-1200 | |
| NPBC014 | 12.7*12.7*12.7 | 1200-1600 | |
| NPBC015 | 20.0*20.0*20.0 | 532 | |
