Specifications
| Material | BK7 |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Surface Quality | 60/40 scratch and dig |
| Clear Aperture | >90% |
| Flatness | <λ/10@632.8nm per 25mm range |
| Chamfer | Protective<0.5mmx45° |
| Coating | Dielectric HR coating on one surface, R>99.5% for random polarization, rear surface ground or inspection polished |
| Damage Threshold | >5J/cm2, 20ns, 20Hz, @1064nm |

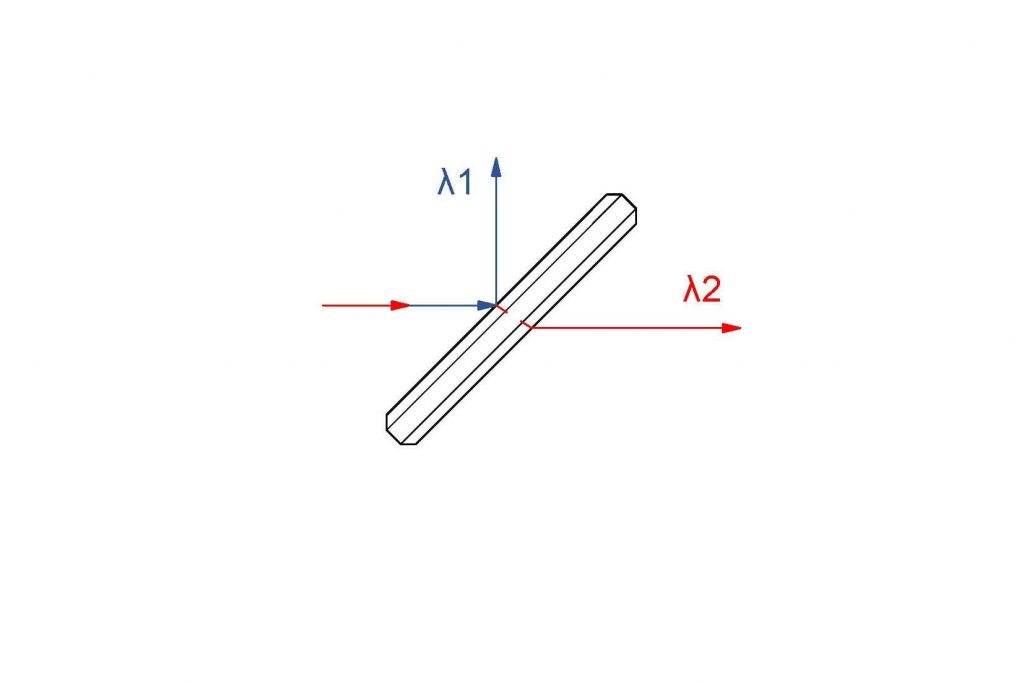

Light Path Map
Features
★ High reflectivity, R>99.5%
★ High damage threshold
★ RoHS Compliant
Standard Product
| Product Number | Dimension [mm] | Thickness [mm] | Wavelength [nm] | Incident Angle [°] | Cart |
| DLLM001 | 12.7 | 3 | 260-270 | 0 |  |
| DLLM002 | 12.7 | 3 | 260-270 | 45 | |
| DLLM003 | 12.7 | 3 | 351-355 | 0 | |
| DLLM004 | 12.7 | 3 | 351-355 | 45 | |
| DLLM005 | 12.7 | 3 | 397-405 | 0 | |
| DLLM006 | 12.7 | 3 | 397-405 | 45 | |
| DLLM007 | 12.7 | 3 | 473-488 | 0 | |
| DLLM008 | 12.7 | 3 | 473-488 | 45 | |
| DLLM009 | 12.7 | 3 | 515-532 | 0 | |
| DLLM010 | 12.7 | 3 | 515-532 | 45 | |
| DLLM011 | 12.7 | 3 | 633-660 | 0 | |
| DLLM012 | 12.7 | 3 | 633-660 | 45 | |
| DLLM013 | 12.7 | 3 | 780-810 | 0 | |
| DLLM014 | 12.7 | 3 | 780-810 | 45 | |
| DLLM015 | 12.7 | 3 | 850-915 | 0 | |
