Specifications
| Material | BK7 |
| Dimension Tolerance | +0.0/-0.2mm |
| Thickness Tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm per 25mm range |
| Chamfer | Protective<0.5mmx45° |
| Coating | Metal HR coating on hypotenuse, two legs inspection polished |
| Damage Threshold | >1J/cm2,20ns,20Hz,@1064nm |

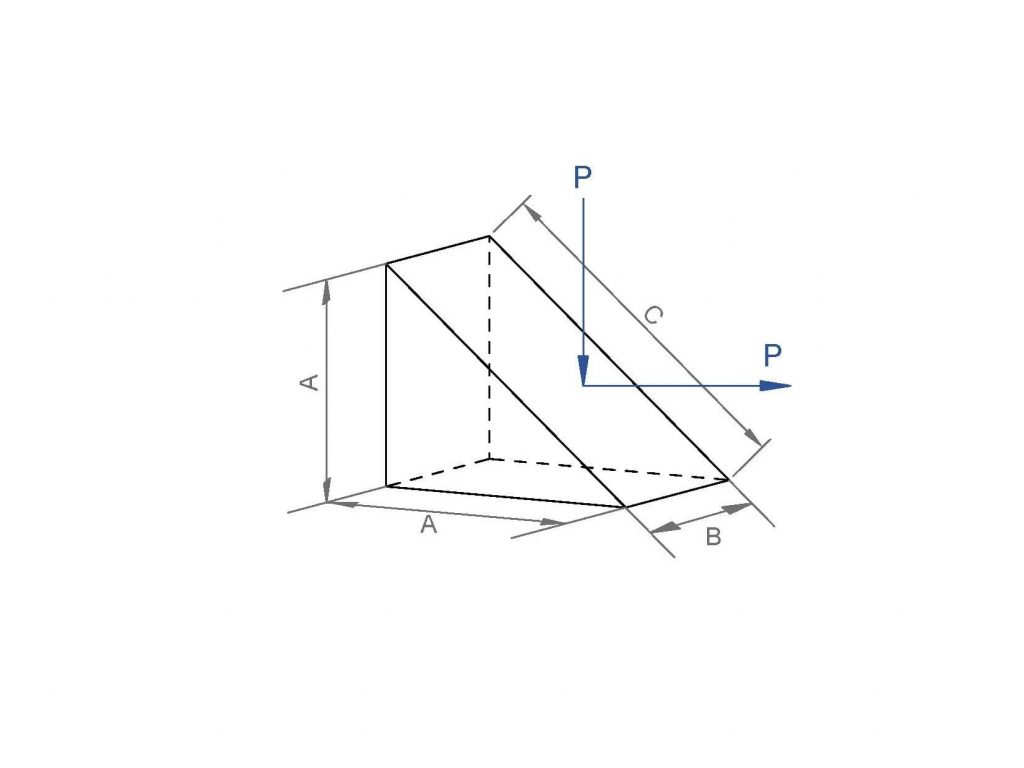

Light Path Map
Tab Content
Features
★ Ideal for Alignment
★ Front Surface Mirror, Reflects Light at 90°
★ Metal Coating and Dielectric Coating Available
Standard Product
| Product Number | Dimension A*C [mm] | Thickness B [mm] | Hypo Coating | Cart |
| RAPM001 | 5*7.1 | 5 | Enhanced Al |  |
| RAPM002 | 10*14.1 | 10 | Enhanced Al | |
| RAPM003 | 12.7*18.0 | 12.7 | Enhanced Al | |
| RAPM004 | 15*21.2 | 15 | Enhanced Al | |
| RAPM005 | 20*28.3 | 20 | Enhanced Al | |
| RAPM006 | 25.4*35.9 | 25.4 | Enhanced Al | |
| RAPM007 | 30*42.4 | 30 | Enhanced Al | |
| RAPM008 | 38.1*53.9 | 38.1 | Enhanced Al | |
| RAPM009 | 50.8*71.8 | 50.8 | Enhanced Al | |
| RAPM010 | 5*7.1 | 5 | Aluminum | |
| RAPM011 | 10*14.1 | 10 | Aluminum | |
| RAPM012 | 12.7*18.0 | 12.7 | Aluminum | |
| RAPM013 | 15*21.2 | 15 | Aluminum | |
| RAPM014 | 20*28.3 | 20 | Aluminum | |
| RAPM015 | 25.4*35.9 | 25.4 | Aluminum | |
