Specifications
| Dimension Tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm |
| Beam Deviation | Up to 30 arc seconds |
| Coating | None, available |
| Material | BK7 |
| Deviation | 30Arc Sec |
| Coating[nm] | / |

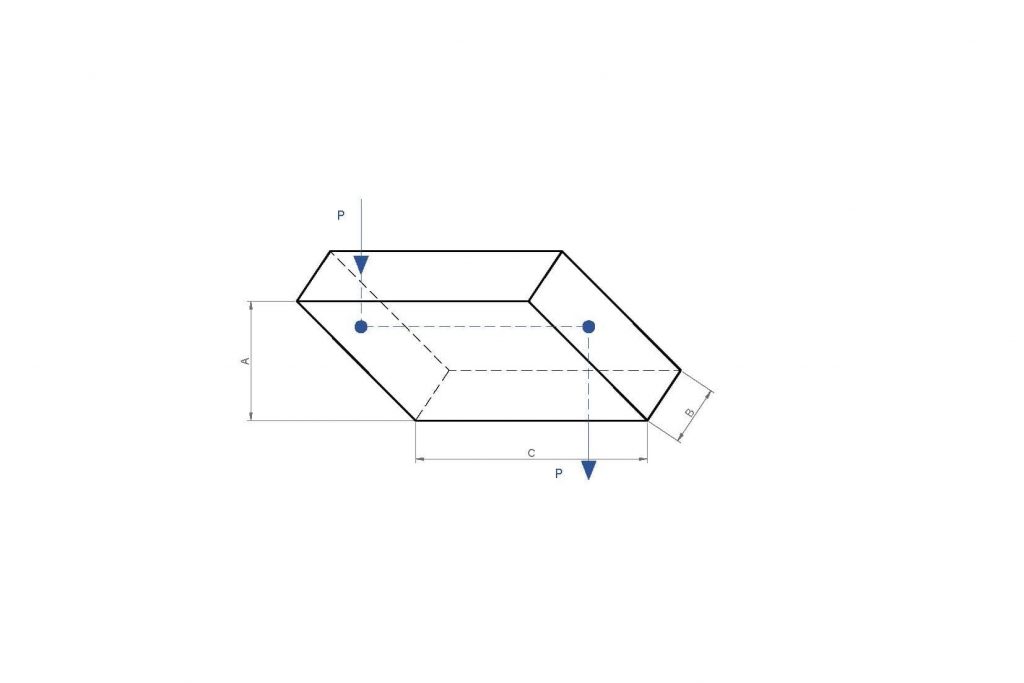

Light Path Map

Description
Rhomboid prism can displace a laser beam without change the image orientation, the input beam is totally internal reflected by two 45degree faces and goes out from the output face. Then, a lateral displacement is produced. Higher transmission rate can be achieved by anti-reflective coating on the input and output faces. Rhomboid prism is always used in stereoscopic system and periscope system. Currently we can make angle tolerance <5 arc seconds, total beam deviation <30 arc seconds. Large size is also available.
