Specifications
| Dimension Tolerance | ±0.2mm |
| Surface Quality | 60/40 |
| Clear Aperture | >90% |
| Flatness | <λ/4@632.8nm per 25mm range |
| Pyramidal Error | <3 arc minutes |
| Angle Tolerance | Refer to below list |
| Chamfer | Protective<0.5mmx45° |
| Coating | None, available |
| Leg Coating | / |
| Hypo Coating | / |

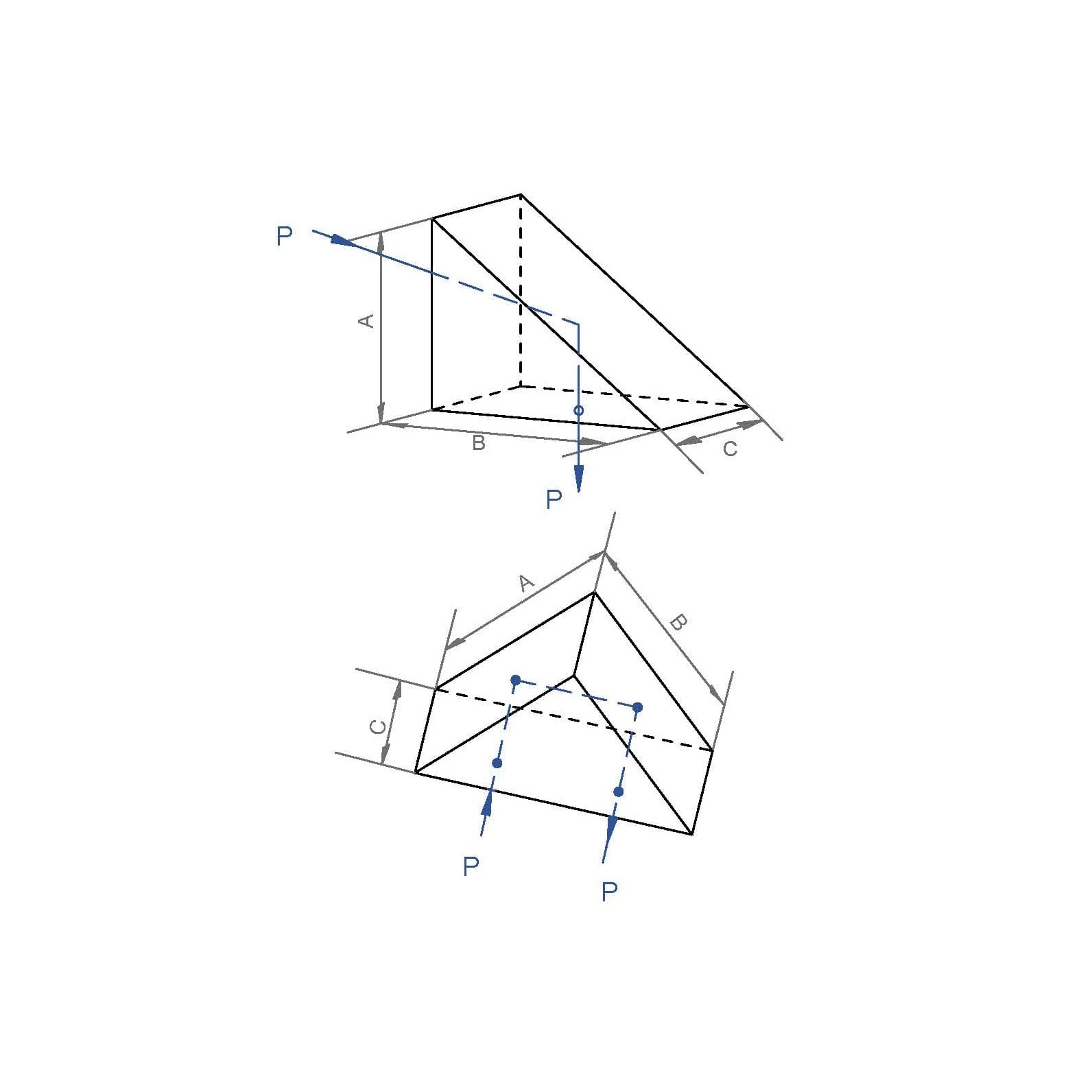

Light Path Map
Description
Right Angle Prism can be used to bend a beam by 90deg or 180deg, depending on which face is entrance face. Please refer to following image to see how it works. Now Crylink can provide standard right angle prisms from 0.5mm to 50.8mm size. Special size can also be offered upon request.
Standard Product
| Product Number | Material | Dimension A=B(mm) | Thickness C(mm) | Angle Tolerance(°) | Cart |
| RAP001 | BK7 | 2*2 | 2 | 3Arc Min |  |
| RAP002 | BK7 | 3.2*3.2 | 3 | 3Arc Min | |
| RAP003 | BK7 | 5*5 | 5 | 3Arc Min | |
| RAP004 | BK7 | 10*10 | 10 | 3Arc Min | |
| RAP005 | BK7 | 12.7*12.7 | 12.7 | 3Arc Min | |
| RAP006 | BK7 | 15*15 | 15 | 3Arc Min | |
| RAP007 | BK7 | 20*20 | 20 | 3Arc Min | |
| RAP008 | BK7 | 25.4*25.4 | 25.4 | 3Arc Min | |
| RAP009 | BK7 | 30*30 | 30 | 3Arc Min | |
| RAP010 | BK7 | 38.1*38.1 | 38.1 | 3Arc Min | |
| RAP011 | BK7 | 50.8*50.8 | 50.8 | 3Arc Min | |
| RAP012 | BK7 | 2*2 | 2 | 30Arc Sec | |
| RAP013 | BK7 | 3.2*3.2 | 3 | 30Arc Sec | |
| RAP014 | BK7 | 5*5 | 5 | 30Arc Sec | |
| RAP015 | BK7 | 10*10 | 10 | 30Arc Sec | |
